Product Description

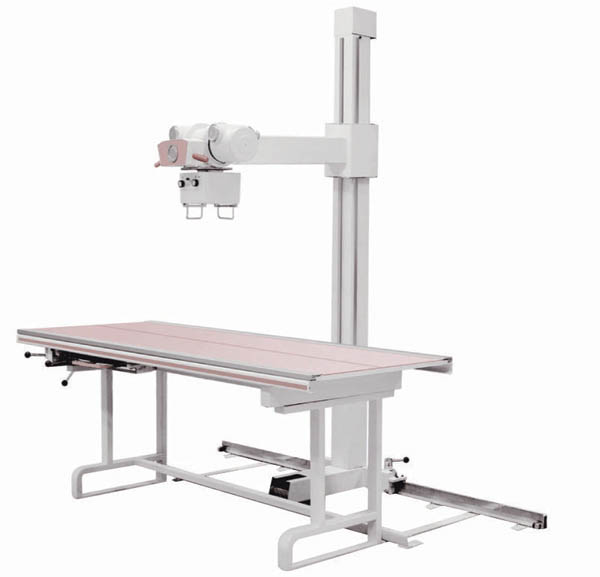

The basic configuration comes with a floor-mounted tube stand
The very slim profile of the floor rail reduces interference with personnel or stretchers moving through the room to a minimum
Futhermore, the entire system does not require any wall or ceiling attachments, making for trouble free and easy installation.
This series systems are equipped with HF generators with power level from 30 to 50kW, depending on your requirements in terms of application and workload.
All the units have integrated APR (Anatomic Programs) to reduce parameter setup times and maximize your workflow.

Main Unit Three-phase 380 (± 10%) V
Capacity ≥ 40kW
Frequency 50Hz ± 1Hz
Resistance ≤ 0.2Ω
Frequency 30kHz ± 1Hz
Max. Output 320 mA / 100 kV / 200 mAs
Voltage 40~125 kV (45steps)
MAs 1.0~250 (47 steps)
Table T17K T17F
Tabletop Height 750mm 700mm
Tabletop longitudinal movement 550mm 550mm
Tabletop transverse movement 230mm 230mm
Wall stand longitudinal movement 1570mm 1570mm
Column rotation Nil 360o
Tube rotating around Y axis -20° ~+120° -20° ~+120°
Bucky device movement 810mm 550mm
X-ray tube Vertical movement range ≥ 1150mm ≥ 1300mm
