Product Description

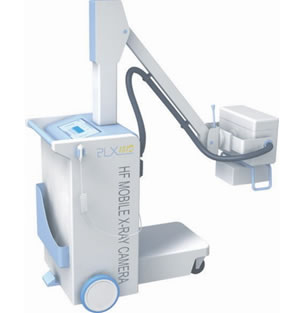

High Frequency Mobile X-ray Camera
Specifications
Power Output 5.0KW
Frequency 40kHz
X-ray Tube Fixed anode
Focus 1.5
Tube Voltage 40~120KV (interval 1KV)
Tube Current 40~49KV 100mA 1~180mAs
50 ~ 59KV 77mA 1 ~ 140mAs
60~69KV 64mA 1~125 mAs
70~79KV 55mA 1~110 mAs
80~89KV 49mA 1~100 mAs
90~99KV 44mA 1~80 mAs
100~109KV 32mA 1~63 mAs
110~120KV 25mA 1~50 mAs
MAs 1.0~180 mAs (46 steps)
Power Supply 220V± 10% 50Hz inner-resistance≤ 1.0? ?
Operation Method Wire /Wireless control
Built-in battery with a built-in back up battery to enable taking 200 to 500 pictures after power interruption.
Rotary pillar
Power Output: 5.0KW Frequency: 40KHz X-ray Tube Fixed anode Focus 1.5mm Tube Voltage 40~120KV (interval 1KV) Tube Current 40~49KV 100mA 1~180 mAs 50~59KV 77mA 1~140 mAs 60~69KV 64mA 1~125 mAs 70~79KV 55mA 1~110 mAs 80~89KV 49mA 1~100 mAs 90~99KV 44mA 1~80 mAs 100~109KV 32mA 1~63 mAs 110~120KV 25mA 1~50 mAs mAs: 1.0~180 mAs (46steps) Power Supply: 220V±10% 50Hz inner-resistance≤1.0 Ω Operation Method: Wire /Wireless control -
HIGH FREQUENCY MOBILE X-RAY MACHINE WITH CAMERA
Model NO.: XM101DType: X Ray EquipmentPower Output: 5.0kwTube Current: 40~49kv 100mA 1~180masFrequency: 40kHzOperation Method: Wire /Wireless ControlSpecification: ISOClassification: Imaging Diagnostic EquipmentGroup: Middle-aged and OldTube Voltage: 40~120kv (Interval 1kv)Mas: 1.0~180 Mas (46 Steps)Power Supply: 220V±10% 50HzOrigin: China
