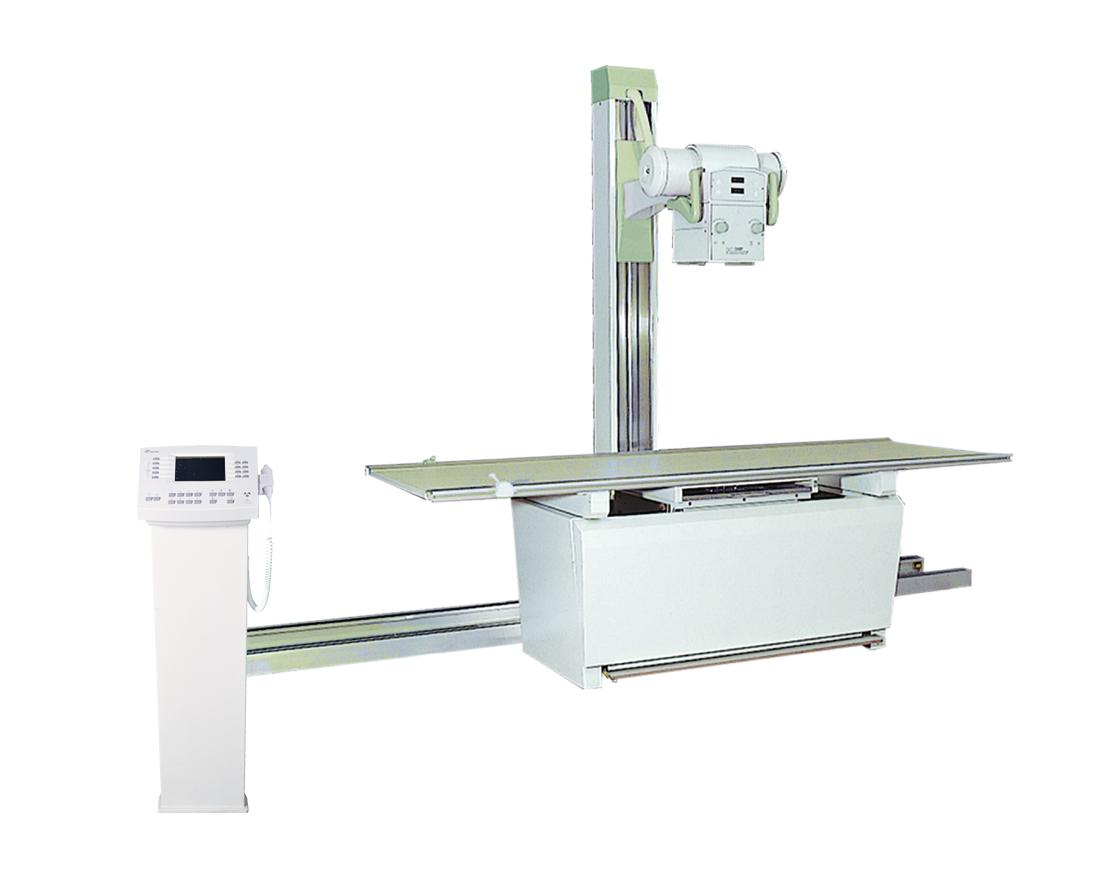

Medial Products 630mA High Frequency Radiography System
GeneratorKvp RangeRadiography 40 ~ 150KVp
MA RangeRadiography 25 ~ 630mA
Time RangeRadiography 1.0 ms ~ 5000ms
Lowest Current Time0.5 mAs
3-Phase Power Supply380VAC± 38VAC
Power Frequency50Hz± 1Hz / 60Hz± 1Hz
Power Capacity60KVA
X-ray TubeRated Voltage150kV
Rated Focal Spot Value0.6
Anode Heat Storage Capacity2, 30, 000HU
Heat Storage of Tube Assembly1, 350, 000HU
Radiographic TableTable Surface (L× W× H)2100× 800× 650mm
Table Surface Moving RangeVertical: 900mm; Horizontal: 240mm
Table Surface Lock Modeelectromagnetic lock, braking force≥ 100N
Table Surface Lock Controlfoot switch (permanent on status)
Grid Dimension356mm × 432mm ( 14"× 17")
Filter Vibrating Modefixed
Dimension of The Film used in FilterMax. 356mm × 432mm (14"× 17") (17" film can only be used in table vertical direction
Source Assembly StandX-Ray Tube components Up-and-Down Motion Range≥ 1220mm
Movement Range Between Tube Focus and Film1100mm
X-Ray Tube Assembly Vertical Motion Range≥ 2380mm
X-Ray Radiation Component Rotating Range Around Support Arm Axis-120° ~ +120°
X-Ray Radiation Component Rotating Range Around the Vertical Axis of the Stand0° ~ ± 90° And 90° Mechanical positioning lock
X-Ray Tube Assembly Locking ForceElectromagnetic locking braking force ≥ 100N
CollimatorMode of AdjustmentManuel
Radiation Field450× 450mm [Max SID = 100cm]; 2× 2mm [Min SID = 100cm]
Time Limit of the Light Source≤ 30s
Ion ChamberSensitivity Per Measuring Field60-80 pC/uGy
Difference Of The Measuring Field≤ 5%
Dose Rate Range0.5-1000 uGy/s
Exposure Dose Range1ms-10s
