  • Product Description

    High voltage generatorHigh frequency constant voltage: 40kHz
    Voltage rang: 22-35kVp, 1kV step
    Max. Current: 100mA
    Max. Output power: 5Kw
    Exposure condition control: Manual/Auto
    X-ray tubeDual focus: 0.1mm/0.3mm
    Anode heat capacity: 150KHU
    Anode type: Rotating Anode
    C- armRotating angle: /145°
    SID: 60cm Fixed
    Anti-scatter grid: Carbon based fine plate
    Cassette size: 18× 24cm
    DimensionsGantry: 650mm× 950mm× 1860mm
    Console: 456mm× 327mm× 880mm
    C- arm vertical movement renge: 630mm
    Overall weight: 250kg
    CompressorManual/Auto: Auto (motor)
    Compression force/method: Max. 18Kg/Auto, three speeds, flexible, fast pressure release
    Compression force display: LED
    Compressor paddle movement range: 268mm
    Power 220VAC, 30A

    MOQ1 set
    Delivery time7-10 days after payment
    Payment termsT/T
    Warranty period1 year

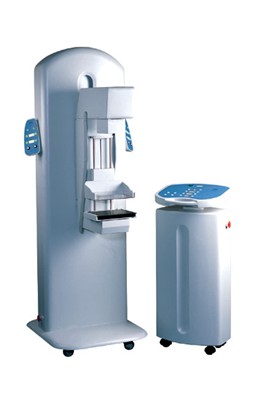

X-RAY UNIT MAMMOGRAPHY

Home  ꄲ  IMAGING  ꄲ  X-RAY UNIT MAMMOGRAPHY
Model NO.: LMD-1005Type: X Ray EquipmentColor: WhiteVoltage Rang: 22-35kvp, 1kv StepMax. Output Power: 5kwTransport Package: CartonOrigin: China Jiangsu NanjingClassification: Imaging Diagnostic EquipmentGroup: FemaleHigh Frequency Constant Voltage: 40kHzMax. Current: 100mASpecification: CE, ISOHS Code: 9022140090
