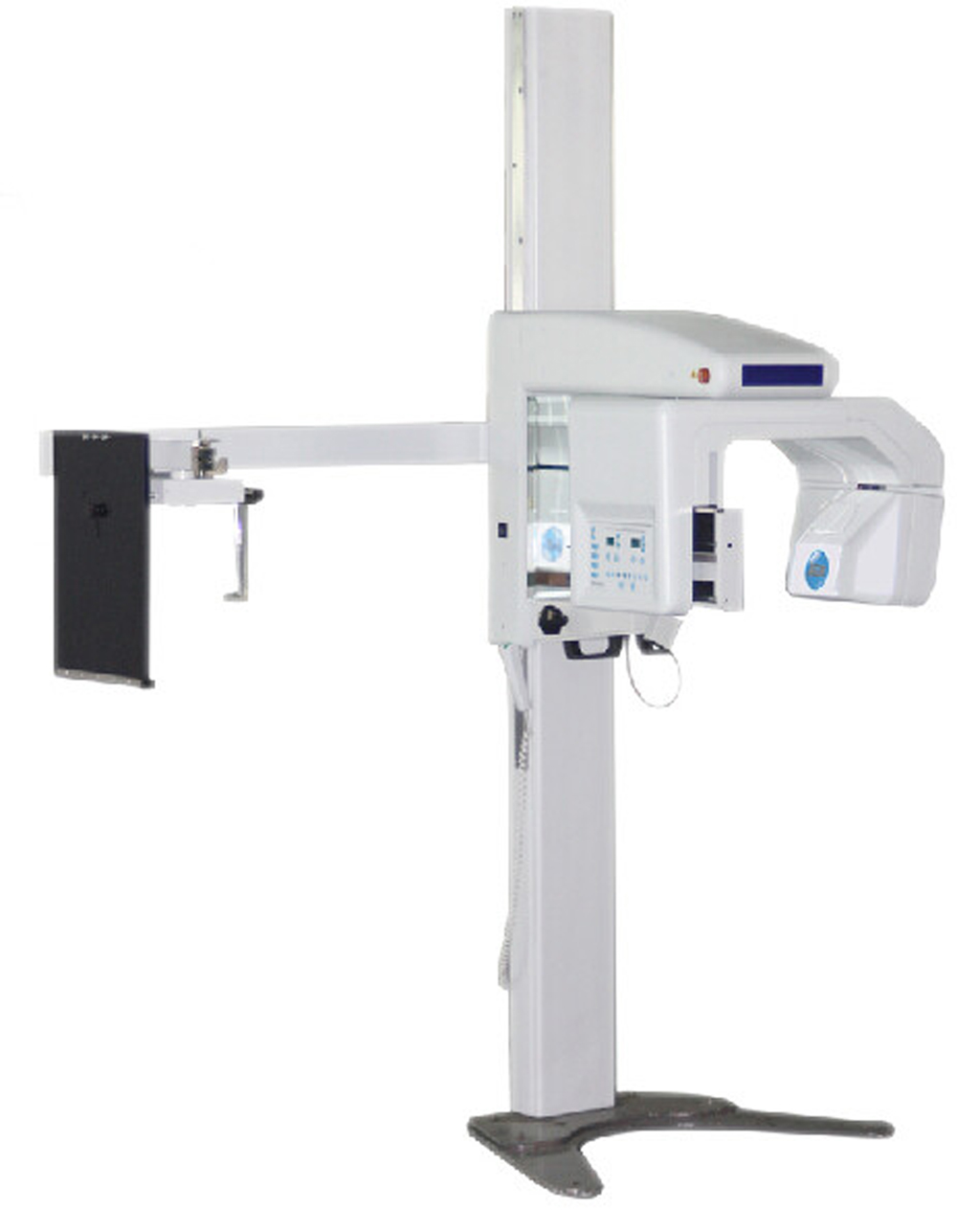

Product Description

FILM Panoramic Parameters
Power Supply220V, 50/60Hz, 10A (can be adjusted as customer's require)
Mains Resistance<1.5ohm at 220V
X-ray generatorHigh frequency dc at 20 kHz
Anodic Voltage60-86 kV, Constant Potential
Anodic Current4-10 mA, Direct Current
Focus size0.5*0.5mm
Inherent Filtration2.5 mm Al
Column Height230cm
Displacement 90 cm, from 90 to 180cm
Vertical MovementManual Adjustment
Patient PositioningManual Carriage Adjustment
Pan Ceph
Focus Film 51cm 158cm
Exposure time 19 s 0.2 to 3.5s(12 steps) mAs from 2 to 35
Projections: Adult(19 s) Antero Posterior
Children(16 s)
Half left(10 s) Latero lateral
Half Right(10 s ) with soft tissue filter
Frontal Teeth(12 s)
TMJ opened and closed
Mouth(4*3.2s)
Frontal Sinuses(18 s)
Cooling pause: Automatically controlled, automatically controlled
6 min max 6 min max
Film size 15*30 cm, flat cassette 18*24cm or 8*10cm
Cephalometric Function Parameters
Anodic Current: 10 mA
The Product of Anodic Current and Time is from 2mAs to 35mAs, divided into 12 block.
Size of Cassette: 18cm * 24cm
