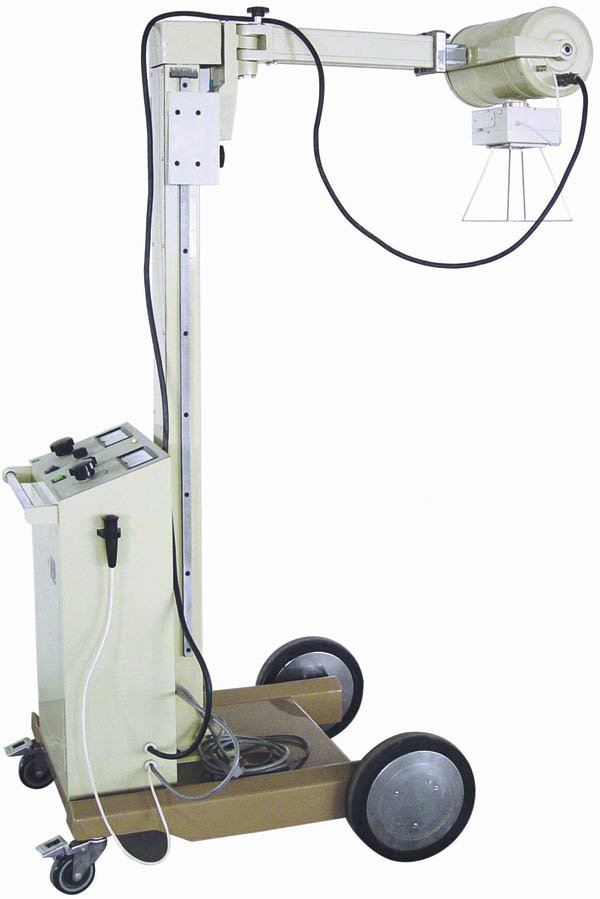

Types of Medical Equipment 100mA Mobile X-ray Unit
X-ray Generator
Stationary anode, double focus, and bridge silicon rectification. The X-ray generator is an oil-immersed self-cooled unit.
Max rated capacityCurrent 15mA 30mA 60mA 100mA
Voltage 90kVp 90kVp 90kVp 80kVp
Time 6.3s 6.3s 4.0s 3.2s
Power supplyVoltage: 180~240V; Frequency: 50Hz
Power: Not lower than 7kVA; Resistance: Not larger than 1Ω
Voltage adjustment range of X-ray tube50~90kVp
Range of the timer0.08~6.3s
Distance between the focus to the ground700~1780mm
X-ray tube focus transverse rotation± 60o
Specification of X-ray tubeModel XD4 2.9/100 fixed anode, double focus 1.8/4.3mm
Transport dimension (L× W× H) (mm)1230× 900× 2050
Weight (kg)Net: 159 / Gross: 256 -
TYPES OF MEDICAL EQUIPMENT 100MA MOBILE X-RAY UNIT
Model NO.: XM-F100Type: X Ray EquipmentPower Supply Voltage: 180~240VVoltage Adjustment Range of X-ray Tube: 50~90kvpDistance Between The Focus to The Ground: 700~1780mmTransport Package: Standard Packaging for ExportClassification: Imaging Diagnostic EquipmentColor: WhitePower Supply Frequency: 50HzMasrange of The Timer: 0.08~6.3sOrigin: Jiangsu, China
